DrayTek SmartVPN for Remote Dial-In Users
You are able to utilise a remote dial-in user to connect yourself to a remote network. Doing so allows you to work as if you were at that site in most cases.
Calculus support and offer this service where the routers are leased from us, simply send a request to the support team.
Installing the App
Download the SmartVPN Client from the DrayTek website for your platform.
Calculus can only provide support for Windows applications, but others do work. This guide covers Windows setup only.
Once you have downloaded the zip file, extact it to your desired location. You'll be presented with 2 files:
Run (by double-clicking) the SmartVPNClient_X.X.X.msi where X.X.X is the downloaded version. The file is a Windows Installer Package and is highlighted above. You will need administrative rights to install this.

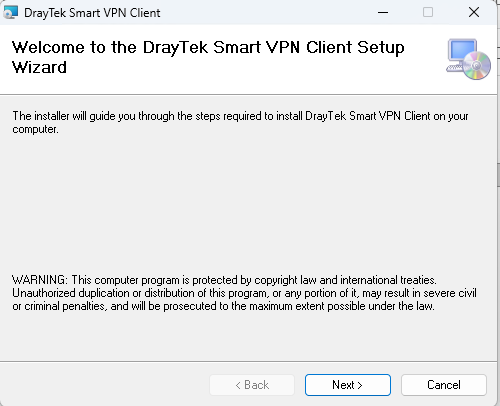

You will be presented with the following screen, press Next.
This will install the app, once completed press the Close button.
Running the App

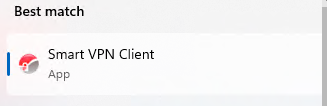

You'll find a Smart VPN Client in your start menu, click to open and run.
First Run

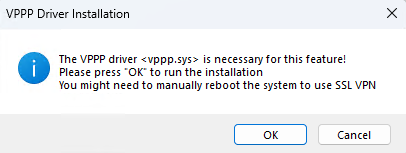

The first time you run the application, you may be prompted to install the VPPP driver "vppp.sys" - press OK to install, it is a required feature for some VPN types.
Configuring a VPN Profile
You can have multiple VPN profiles, but may only be connected to one at once.

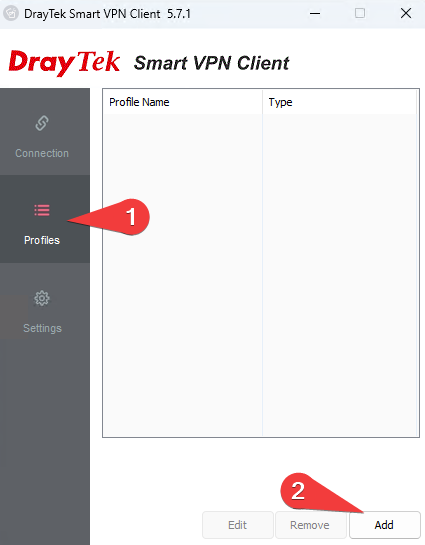

Select Profiles on the left-hand side, and press the Add button.
|

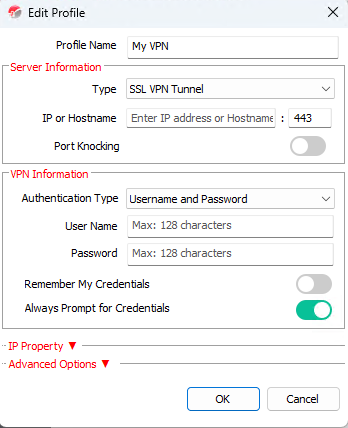

Enter a sensible profile name, this is purely what you will select to connect to.
The details below are for our most commonly used VPN types. If you need another type, details will be provided to you as required.
Server Information These details will be provided to you by the support team. Select the relevant type. Typically, SSL VPN or IPSec VPN types are what is used.
VPN Information These details will also be provided to you by the support team, enter them in the relevant fields. If using mOTP and SSL, the token and PIN will be provided to you.
You may opt to remember your credentials here, which will mean you do not have to enter them every time. Make sure you turn off
IP Property Only make changes in here if expressly instructed.
Advanced Options Only make changes in here if expressly instructed. |
|
Connecting to the VPN
Once your profile is setup, you can then connect to it.

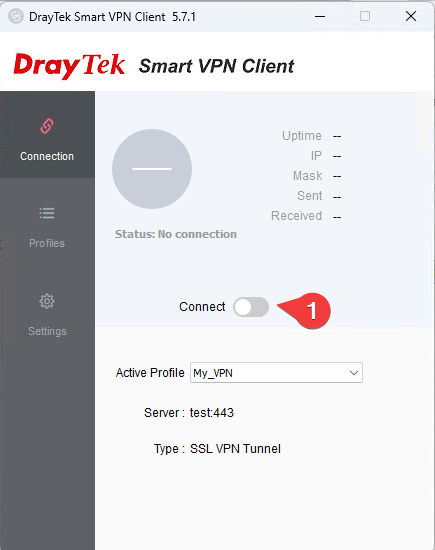

On the connect tab, ensure your Active Profile is selected in the dropdown, and toggle the Connect button.
If this errors at all, please ensure you provide the support team with the error for diagnosing the issue.

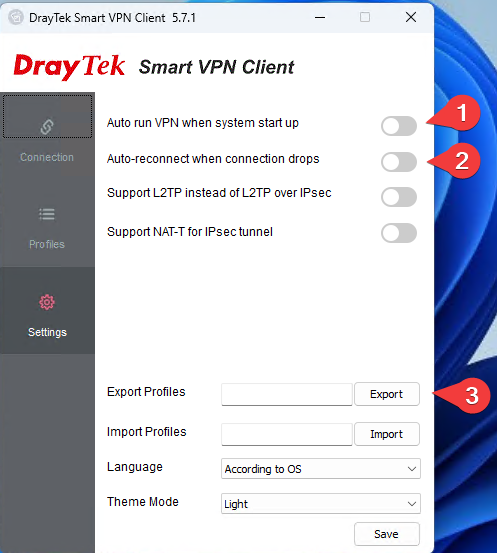

Other Useful Settings
These can only be changed when you do not have a VPN connected.
|
1. Enable this option to have the Smart VPN Client start with your system.
2. Enable this option to have the Smart VPN Client attempt to reconnect in the event your VPN loses connection at all.
3. Press |
|
